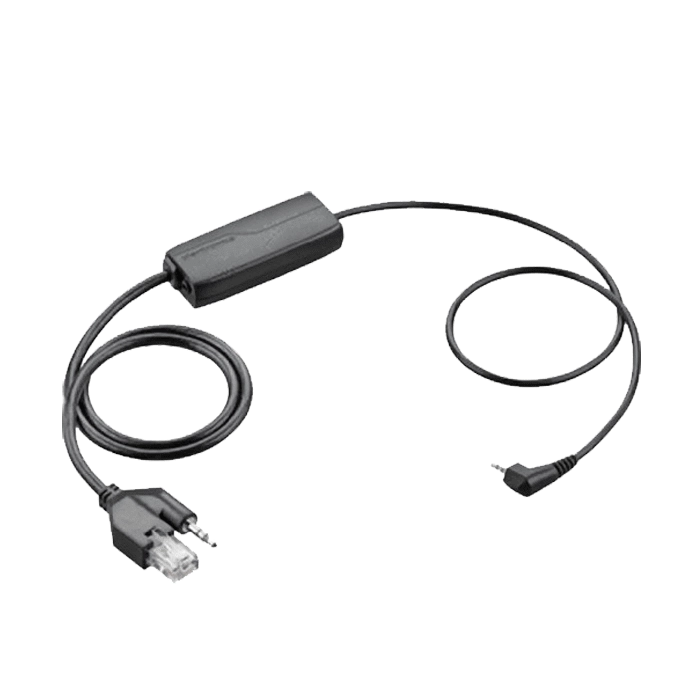

Poly APC-45 EHS Cable (Cisco) – Poly 87317-01 or HP 85Q57AA
The Poly (formerly Plantronics) APC-45 Electronic Hook Switch (EHS) cable part # Poly 87317-01 or HP 85Q57AA communicates electronically with your desk phone giving your wireless headset call control. The APC-45 EHS allows ring alerts to sound in your headset as well as answer and end calls remotely.
This cable eliminates the need for a HL10 handset lifter. This cable works with Cisco desk phones and may work with additional manufacturers.
Poly has several EHS adapters, each being unique to a specific telephone and wireless product.
We strongly suggest confirming compatibility with us before purchasing.

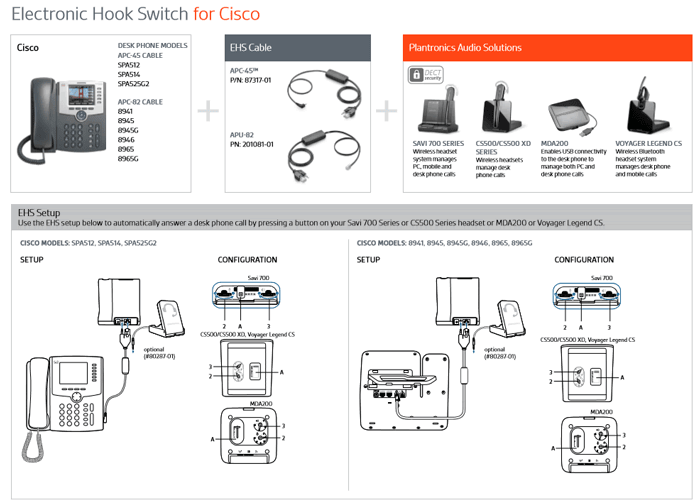

TECH TIP: APC-45 EHS Compatibility/Installation Guide
Poly APC-45 Compatibility:
Headset Compatibility
- CS500 Series
- Current: CS540, and all -XD variants
- Discontinued: CS510, CS520, CS530
- Savi Series
- Current: 7210, 7220, 7310, 7320, 8210, 8220, 8245, and all -M variants
- Discontinued: W710, W720, W730, W730, W740, W745, and all -M variants
- Voyager Series
- Office: 4210, 4220, 4245, 5200
- USB: When used with Voyager Office Base and all -M variants
Cisco Phone Compatibility
- SPA512
- SPA514
- SPA525, SPA525G, Star2Star SPA525G21
Special Programming For Cisco Telephones:

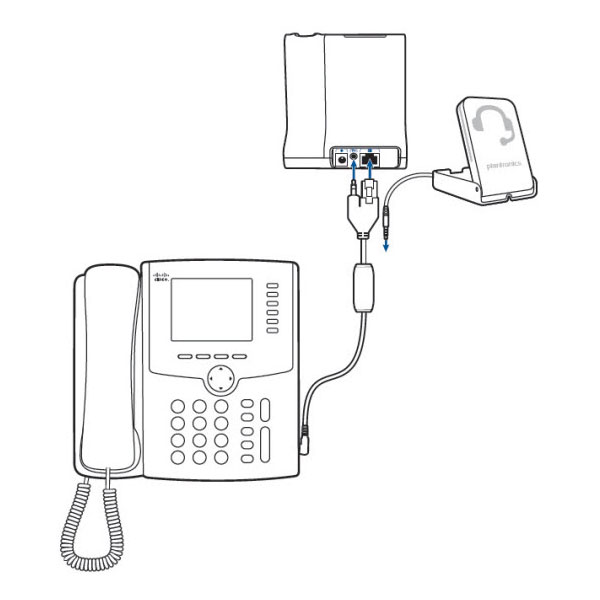

Phones should be running firmware version 7.5.2b and above to support EHS cable. APC-45 cable needs to be plugged into the 2.5mm headset port of the phone.
The Poly APC-45 EHS should be selected in the web interface (CISCO Call Manager) under Voice–>User–>Audio–>EHS option–>Poly/Plantronics
Note 1: APC45 works in SIP mode and SCCP mode only from firmware 7.5.4. In firmware versions prior to that APC45 will work in SIP mode but not in SCCP mode for SPA525.
Cisco SPA phones sends a one time three beep ring alert. It does not send continuous ring alerts. Cisco engineering is aware of this issue and do not plan to fix it unless there is a customer escalation. EHS type should be set to Plantronics under the Voice – User – Audio EHS option.
Poly APC-45 EHS Specifications:
- Model: APC-45
- Poly SKU: 87317-01
- UPC: 0017229137547
- HP SKU: 85Q57AA
- UPC: 197497572339
- Warranty: 1 year
ErinM –
Cisco SPA 525G2 REQUIRED ITEM – I received my SPA 525G2 phone, but when purchasing the phone it needs to say that the phone will not work without an APC-45 if using with a Cisco SPA 525G2 evidently. I’ve been trying to get to the bottom of this for several days and finally have. Plantronics told me if you use their SAVI 8210M with a Cisco SPA 525G2 you must have an APC-45 in order for the Cisco phone to work properly.
