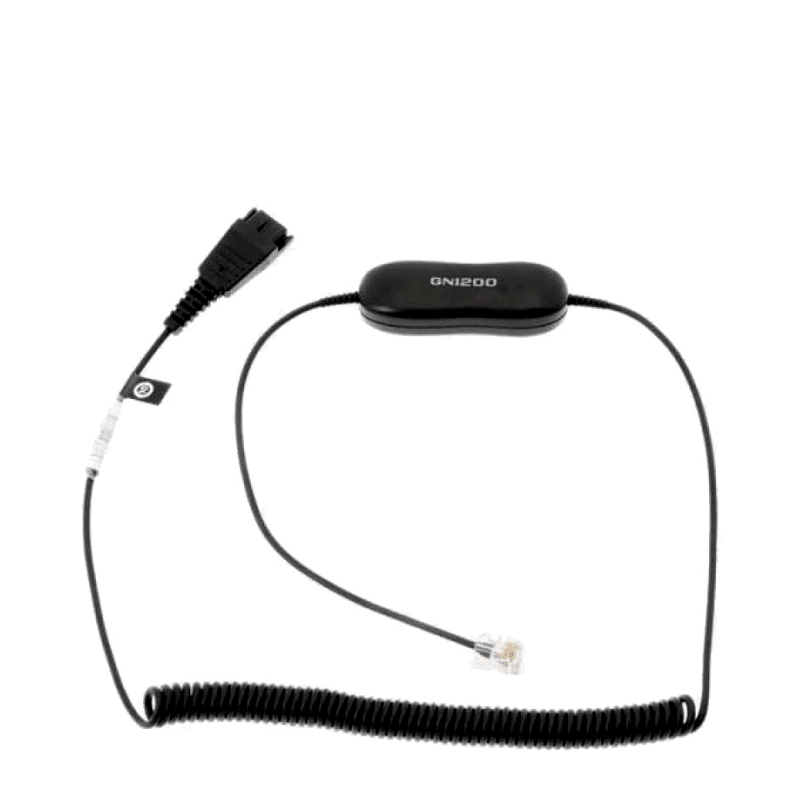

Jabra GN1200 CC (coiled cable) audio enhancer for Contact Center:
The Jabra GN1200 cord is the solution to a common problem of not being able to connect the headset and telephone. Even though most things have been standardized, the cord connecting the phone with the handset or headset is anything but standard as each telephone manufacturer has its own wiring code. Now, with the universal “smart” cord, Jabra GN1200, the cord will work with virtually any phone providing greater convenience.
- Works with most desk phones including IP hard phones
- Microphone amplification to boost transmit levels when connecting to low transmit volume phone systems
- Simple slide adjustment for easy setup
When hooking up a new headset there is not always a dial tone. The problem could be the headset or the telephone. But chances are it is the cord. Even though the headset and telephone may be plug-compatible, the wiring is determined by the individual telephone manufacturer.
Jabra GN1200 features eight separate wiring schemes – including three with built-in microphone amplification. Just connect the Jabra GN1200 and headset through the Quick Disconnect plug and flick the slider from one position to the next until a dial tone is heard. It’s as simple as that!

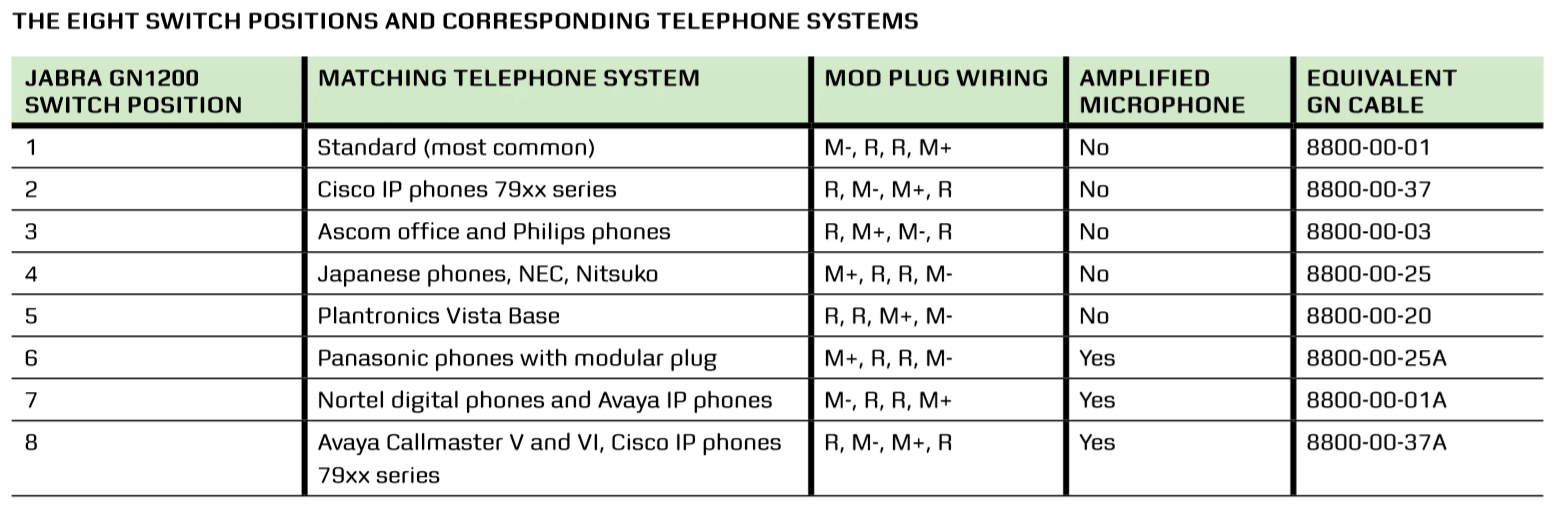

|Jabra GN1200 Switch position||Matching Telephone system||Mod plug wiring||Amplified microphone||Equivalent GN cable|
|1||Standard (most common)||M-, R, R, M+||No||8800-00-01|
|2||Cisco IP phones 79xx series||R, M-, M+, R||No||8800-00-37|
|3||Ascom office and Philips phones||R, M+, M-, R||No||8800-00-03|
|4||Japanese phones, NEC, Nitsuko||M+, R, R, M-||No||8800-00-25|
|5||Poly Vista Base||R, R, M+, M-||No||8800-00-20|
|6||Panasonic phones with modular plug||M+, R, R, M-||Yes||8800-00-25A|
|7||Nortel digital phones and Avaya IP phones||M-, R, R, M+||Yes||8800-00-01A|
|8||Avaya Callmaster V and VI, Cisco IP phones 79xx series||R, M-, M+, R||Yes||8800-00-37A|
