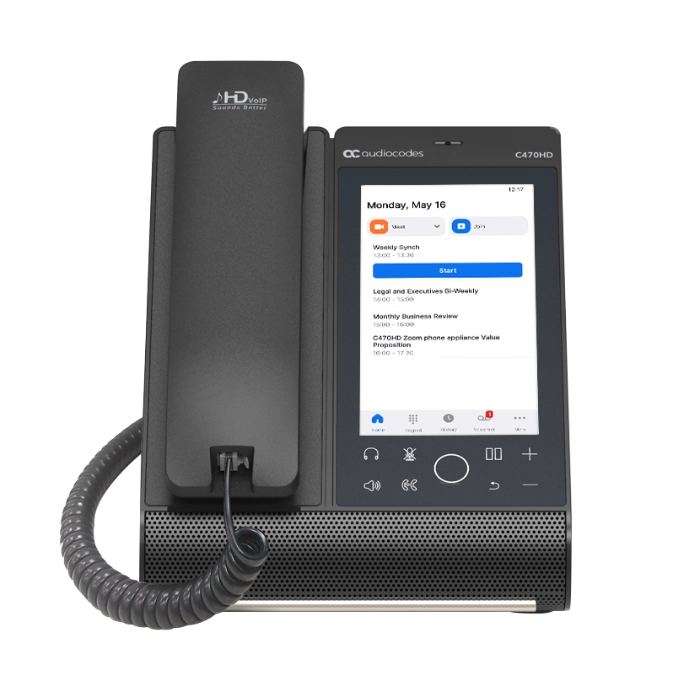

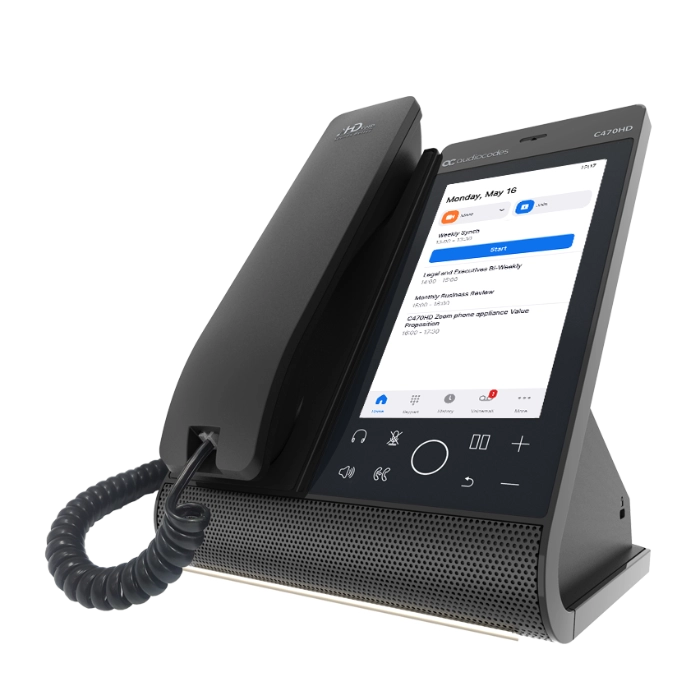

AudioCodes Zoom C470HD Phone

AudioCodes Zoom C470HD High-End Touch Screen Business Phone

The AudioCodes Zoom C470HD phone is a feature-rich desktop device with high voice quality, superior ergonomics and simple workflow design.

When deployed in Zoom Phone environment, the C470HD delivers an optimal user experience and provides traditional PBX voice functionality.

AudioCodes IP phones support Zoom’s Zero Touch Provisioning (ZTP), thus deployment and provisioning don’t require registration from the phone itself. Simply plug into a network, via Wi-Fi or fixed Ethernet cable, and start working right away.

Superior Zoom Phone Experience

The AudioCodes 400HD series of Zoom-certified phones is a range of easy-to-use, feature-rich products for boosting workplace productivity by providing a superior Zoom Phone experience.

Each phone is packed with advanced features to deliver crystal-clear voice quality, superb image clarity, calendar synchronization and one-click to join functionality for seamless integration with any Zoom Phone deployment in any sized enterprise.

All AudioCodes Zoom-certified devices can be managed and monitored from the cloud using Zoom Device Management (ZDM).

Zoom Key Features:

• Basic and advanced calling features, including PSTN calling, transfer to voice mail, peer-to-peer calls, in-call controls (Mute/Unmute, Hold/Resume), call transfer and call park.
• Zoom call flip to another device
• Call monitoring (listen, whisper, barge, conference barge, take over)
• Do not disturb (DND)
• View and manage voice mail
• Hot desking
• Group call pickup

AudioCodes Zoom C470HD Phone Features:

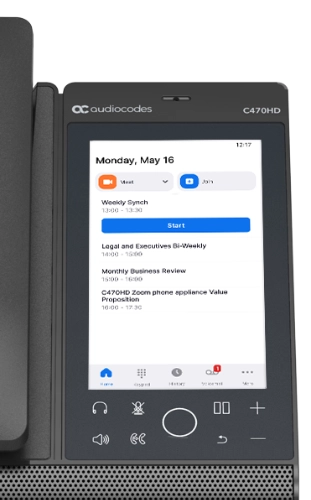

The Zoom C470HD is a high-end, executive business phone certified for Zoom Phone Appliance, featuring a remarkable clean and intuitive design with a graphical portrait 5.5″ color touch screen and a virtual keyboard.

• Total Touch single surface design (touch screen, touch keys)
• High-end portrait 5.5″ touch screen (720 x 1280), easily readable from a distance
• Full duplex speakerphone and headset connectivity
• Dual GbE support
• PoE or external power supply
• USB headset support
• Integrated Bluetooth headset support and dual-bank Wi-Fi connectivity^∗
• Android OS 9.0 (roadmap for Android OS upgrade)
• Kensington lock

* Bluetooth and Wi-Fi is supported in specific regions such as the USA, Canada, the EU, Switzerland, Israel and others, and requires a specific CPN with a “DBW” suffix when ordering.

AudioCodes Zoom C470HD Phone Technical Specifications:

User Interface

• Intuitive touch screen including virtual keyboard
• Touch keys with backlight for Home, Mute, Speaker and Headset
• Touch keys without backlight for Back, Hold, Transfer and Volume
• Virtual keypad (triggered via the speaker or headset touch key)
• Multi-lingual UI support

Network and Security Features

• Voice coders: G.711, G.729, G.722, SILK
• Acoustic echo cancelation
• Adaptive jitter buffer
• Voice activity detection
• Comfort Noise Generation
• Packet lost concealment
• RTP/RTCP packetization (RC 3550, 3551), SRTP (RFC 3711)

Media Processing

• HTTP/HTTPS secured provisioning
• UDP/TCP, NTP, NDS/SRV
• RTP/RTCP packetization (RC 3550, 3551), SRTP (RFC 3711)
• TLS version 1.2 — secured transport layer
• 802.1x for secured network access
• VLAN discovery modes: CDP-LLDP, CDP only or LLDP only
• Support for HTTP proxy ad PAC file, either manually or via DHSP option 252

General Specifications

• Centralized management supported by the AudioCodes One Voice Operations Center (OVOC) Device Manager
• Zero touch with AudioCodes Redirect server

AudioCodes Zoom C470HD Phone Unique Hardware Parameters:

Wired Connectivity

• USB Headset, RJ-9 Analog Headset
• Tow RJ-45 Gigabit Ethernet (GbE) (10/100/1000BaseT Ethernet) ports for WAN and LAN

Screen Orientation

• Portrait

Wi-Fi “DWB” CPN

• Dual band 2.4 GHz and 5 GHz
• 802.11b/g/n Wi-Fi support

Bluetooth Connectivity (for headset)

• C470HD “DWB” BT5

PoE Class

• 3 (IEEE8022.3af)

DC Power Jack

• 12V, optional external power supply 2A/12V 100^~240V

Base Stand Options

• Single position, no wall mount

AudioCodes Zoom C470HD Phone Unit Dimensions

• 180mm (W) x 165mm (D) x 230mm (H)

Unit Weight

• 1.741 kg

Storage/Operation Temperature

• -4 to 158°F / 32 to 104°F

General

• Warranty – 1yr
• AudioCodes C470HD ZPA
• SKU:
  • POE: ZOOM-C470HD-DBW
  • Power Supply: ZOOM-C470HDPS-DBW
