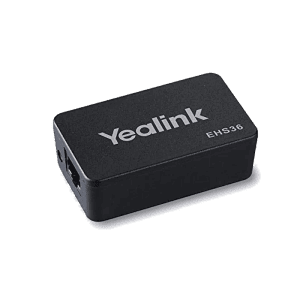

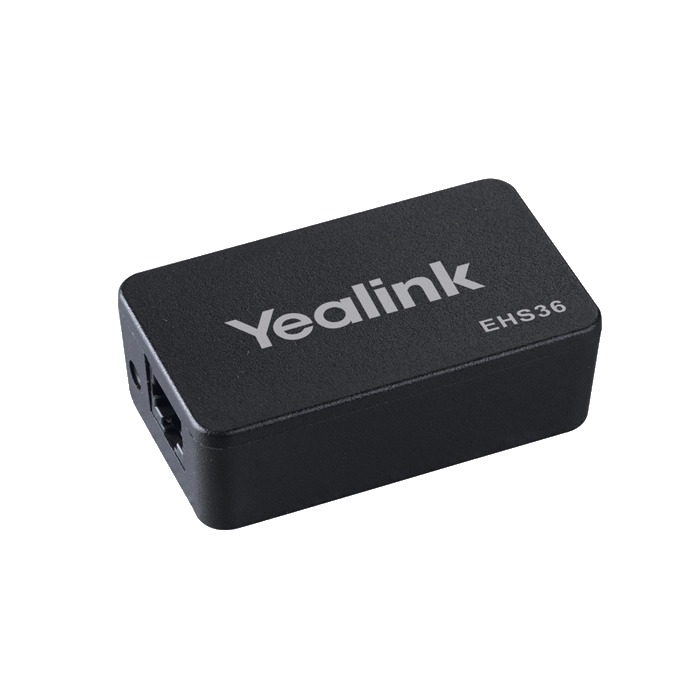

Yealink EHS36 Wireless Headset Adapter For Remote Headset Functions
The new and advanced Yealink Headset Adapter EHS36 provides the technical interface between your Yealink SIP-T48S/T46S/T42S/T41S/T48G/T46G/T42G/T40G/T40P/T41P/T29G/T27G/T27P IP Phones and a compatible wireless headset. It is approved for using with major manufacture Jabra, Plantronics, Sennheiser wireless models.
The unit is easy to install, simply link EHS36 to the EXT port of the phone and, effectively `plug and play’ giving you control of your Yealink phone and the ability to answer and hang up calls remotely.
It has been especially designed to ensure maximum productivity in business applications such as receptions, call centers and general telephone use and is ideal for the Corporate, Financial, Health, Government, Educational, Industrial, and SME/SoHo market sectors.
Compatible with: CS500 Series (CS510, CS520, CS530, CS540), Savi Office (WO100, WO200, WO300, WO350), Savi 700/7200/7300/8200 Series (W710, W710-M, W720, W720-M, W730, W730-M, W740, W740-M, W745, W745-M, S7210, S7220, S7310, S7320, W8210, W8210-M, W8220, W8220-M), Voyager 4245, Voyager 5200 1W/2W, Voyager Office Base
Setup and Installation: EHS36_User_Guide

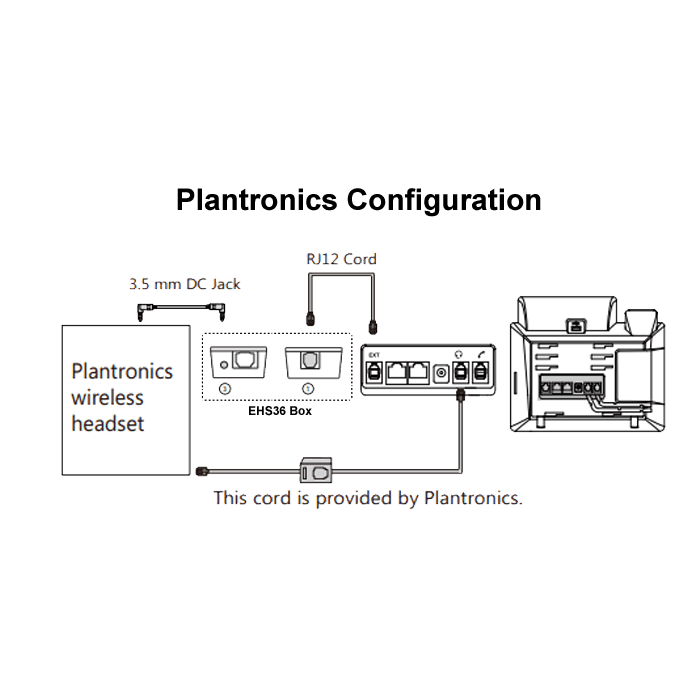

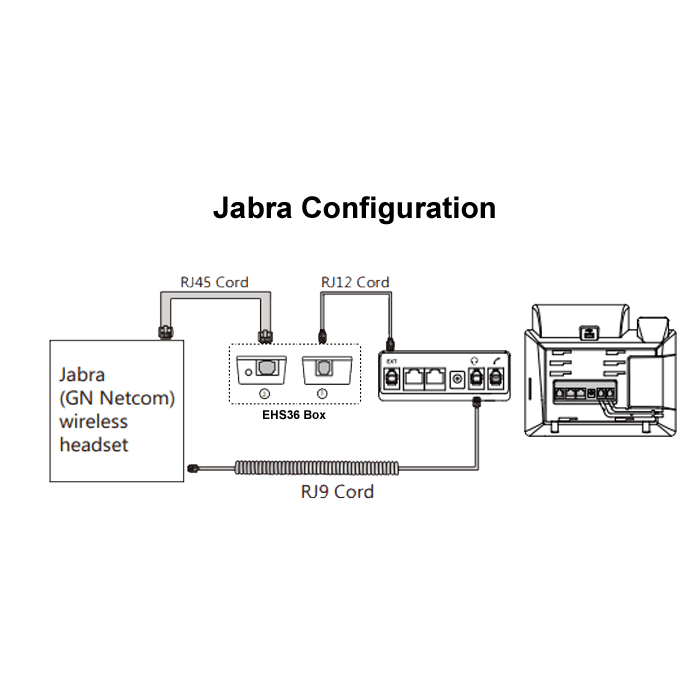

TECH TIP: Yealink EHS36 setup/installation guide
NOTE: 3.5MM SPLITTER CABLE (Sold Separately) IS REQUIRED FOR BUSY LIGHT USE
Product Details:
Main Features
- Supports Yealink T48S, T46S, T42S, T41S, T48G, T46G, T42G, T40G, T40P, T41P, T29G, T27G, T27P
- Compatible with Poly (Plantronics), Jabra, and EPOS | Sennheiser wireless headsets
- Simple to setup
- Answer/End call remotely with push of button on wireless headsets
- Incoming call alerts will be heard in the headset earpiece
Physical Features
- Built-in RJ12 (6P6C) input port connected to IP phone
- 1 x RJ45 (8P8C) output port for GN/Jabra/Sennheiser headset
- 1 x 3.5mm output port for Plantronics headset
- Accessories: 1 x RJ12, 1 x RJ45, 1 x 3.5mm, 1 x RJ9, 1 x Sennheiser Y-Cord

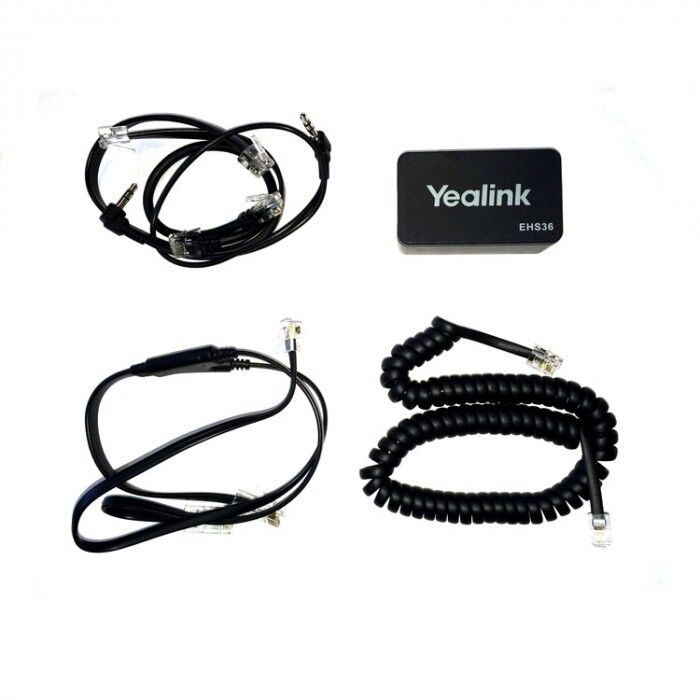

Package content
- EHS36
- RJ45 cord
- RJ12 cord
- RJ9 cord
- 3.5mm cord
- Sennheiser Y-cord
- User Guide
Part # EHS36
UPC: 0841885103673
Devon –
I just wanted to say thank you for the amazing instructions you guys have on your website. The set-up instructions that come with headsets are usually not very helpful and yours are the best. Thank you so much!!
Daan R (verified owner) –
This EHS is overly complex to set up, but works well once you manage to connect it the right way. I have worked with other branded EHS and they have a much cleaner and easier installation and set up. The included instruction manual is not much use either
However, the instruction sheet on the Headsets Direct support page is a lifesaver. It will take you though the set up step for step with pictures and our systems all worked once we followed their instructions. Thanks a lot for that. Great customer service and the reason why I buy all our headsets vie headsets Direct.
Rebecca S –
Hi Tony!
Just wanted to let you know that between you guy’s and the Platronics tech support we are fully functioning down here in Jacksonville, FL! Thanks so much for your help and your team’s time at Headsets Direct Inc. We will certainly pass the word of the excellent quality service we have received in the past month! (:
DStreit (verified owner) –
Adapter didn’t work with my Yealink T48S. I had to retire my Plantronics headset and go with the Yealink Bluetooth adapter and a new BlueParrot Bluetooth headset.
headsetsdirect (verified owner) –
The T48S is compatible with the EHS36 as we provide them regularly to customers. Our guess is the wiring setup needs to be re-visited.
Tiffany –
Works great together with my phone.
