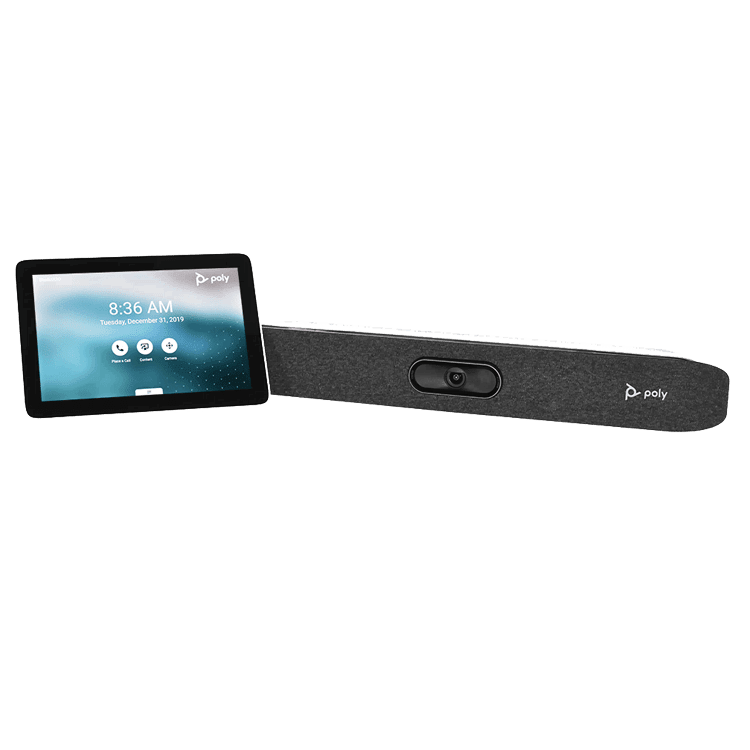

Poly Studio X30 Video Bar | Video Conference Equipment | 2200-86260-001

(Up to 6 people)

$1,899.12

  • Same Day
    Shipping

Poly Studio X30 Video Bar | Video Conference Equipment

  • Native Zoom Interface (Zoom Mode)
  • H.323/SIP (Poly Video Mode)
  • 4K camera w/ automatic framing & tracking
  • Noise BlockAI
  • Wireless content sharing
  • Mono speaker
  • 4 MEMS microphones
  • Up to 6 participants
  • 4x camera zoom

*View Service Plan Options and Call for Pricing

  • Speciality Item - Please Call
  • Warranty 1-Year
Featured Videos
Meeting Mojo with Poly & Zoom Video Communications
Poly Studio X30 Collaboration Bar for Microsoft Teams

Poly Studio X30 Video Bar | Video Conference Equipment

Discover radical simplicity in a single sleek device with the new Poly Studio X30 video bar. With this device, there is no need for a computer with could service platform built in. Simply use the TC8 touch control interface with simple and fast setup. Poly video conference equipment will connect easily in smaller conference rooms, up to 6 people, with almost any video collaboration software, including Zoom. The beam forming microphone array ensures crystal clear voices.

Just because your meetings are in small spaces doesn’t mean those meetings aren’t important. Meet the Poly Studio X30, an all-in-one video bar for huddle and small rooms. It’s radically simple to use with support for leading cloud video services built right in — no PC or Mac required. Voices are crisp and clear, thanks to a beamforming microphone array and acoustic chamber design. Built-in, wireless content sharing lets users share from their devices without the need for cables or pucks. Setup, management, and maintenance are all streamlined, too. With Poly video conference equipment, say hello to lower IT costs.
  • Video conferencing equipment by Poly is ideal for rooms of up to six participants
  • Compact, lightweight design easily fits on top of display
  • Affordable price delivers excellent huddle room performance without breaking the bank
High quality video conferencing equipment will make conference calls easy to initiate and provide your staff a productive tool for collaborating.

Studio X30 Video Bar Features

  • 4K camera w/ automatic framing and tracking
  • NoiseBlockAI
  • Share easily over wired or wireless connections
  • Support for multiple Video-as-a-Service (VaaS) platforms, including Zoom, BlueJeans, and GoToMeeting, without the need for a PC
  • Wireless content sharing
  • 1 (mono) speaker
  • 4 MEMS microphones
  • Supported for 1 monitor
  • 4x camera zoom
  • Up to 6 participants
  • 1 year warranty
  • SKU # 2200-86260-001

Whats In The Box

  • Poly Studio X30

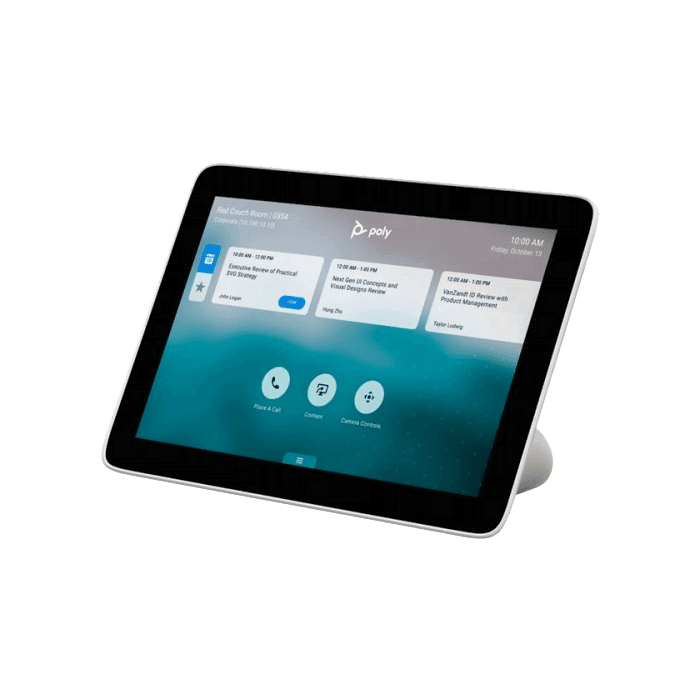

  • TC8 Touch Control Interface
  • Cable bundle
  • Monitor clamp
  • Magnetic Privacy cover

X30 Video conferencing equipment by Poly:

VIDEO CONFERENCING HARDWARE INCLUDES:
• Poly Studio X30
• Cable bundle
• Monitor clamp
• Privacy cover

VIDEO STANDARDS AND PROTOCOLS
• H.264 AVC, H.264 High Profile, H.265

VIDEO INPUT
• 1x HDMI
VIDEO OUT
• 1x HDMI
• Touch display compatible
PEOPLE VIDEO RESOLUTION
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
CONTENT VIDEO RESOLUTION

Input:

• UHD (3840 x 2160)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600

Output

• UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)

Content frame rate
• 5–60 fps (up to 4K resolution at 15 fps in call)

CONTENT SHARING
• Polycom Content App support
• Apple Airplay
• Miracast
• HDMI
• Whiteboarding

CAMERA

• 4x digital zoom
• 120° FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing and speaker tracking

AUDIO INPUT
• Four MEMS microphones
AUDIO OUTPUT
• Single Speaker
OTHER INTERFACES
• 1x USB 3.0
• 1x USB-C
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
AUDIO STANDARDS AND PROTOCOLS
• 22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
NETWORK
• IPv4 and IPv6 support
• 1 x 10/100/1G Ethernet
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps in Poly App video mode
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support—basic, digest, and NTLM
• Simple Certificate Enrollment Protocol (SCEP)
SECURITY
• Media Encryption (H.323, SIP): AES-128, AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface, and APIs
• FIPS 140-2 Validated Cryptography
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
OPTIONS
• VESA and wall mount kit
• Stand
• Poly TC8
INTEROPERABILITY
• Support for native 3rd party applications, including Zoom Rooms for Android
• All cloud service providers through Poly Video App mode

ELECTRICAL
• Auto sensing power supply
• Typical operating voltage/power
– 37 VA @ 120 V @ 60 Hz
– 37 VA @ 230 V @ 50/60 Hz
• Typical BTU/h: 65

ENVIRONMENTAL SPECIFICATION
• Operating temperature: 0 to 40 °C
• Operating humidity (non-condensing): 15 to 80%
• Non-operating temperature: -40 to 70 °C
• Non-operating humidity (non-condensing): 5 to 95%
• Maximum altitude: 16,000 ft

PHYSICAL CHARACTERISTICS
• 17.39 W x 2.46 H x 2.42 D (inches) 441.8 W x 62.5 H x 61.6 D (mm)
• 1.6 lbs/.73 kg

WARRANTY
• One-year return to factory parts and labor



Additional information

Brand

Polycom

Compatibility

BlueJeans, GoToMeeting, ZOOM

SKU

2200-86260-001

Warranty

1-Year

USB Connection Type

USB-A, USB-C

Availability

Speciality Item – Please Call
