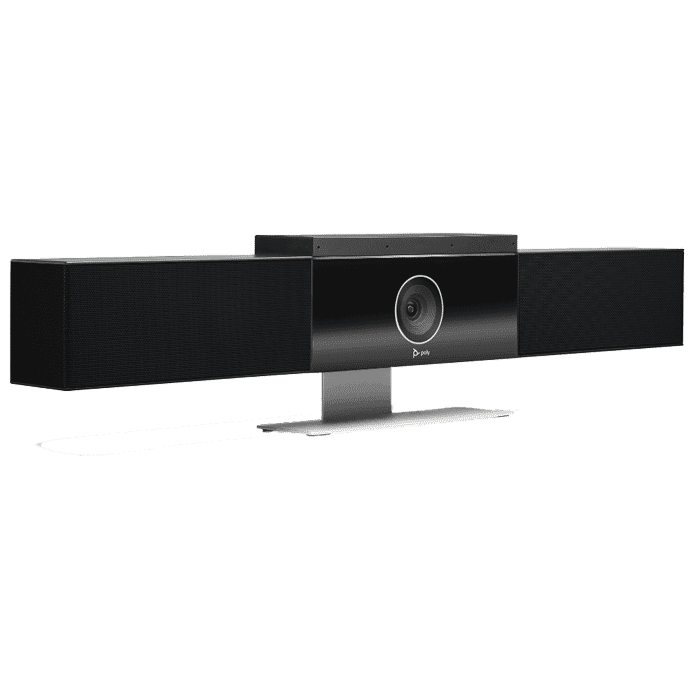

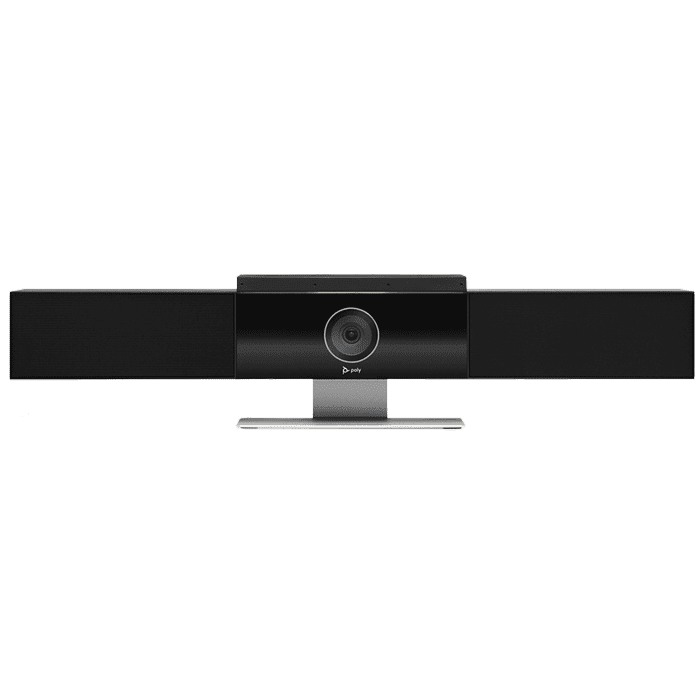

Poly Studio USB Video Bar

Manage And Deploy With Ease – Cloud-Based Tools Make Management And Insights A Breeze

Management tools like Poly Lens, cloud management software let IT push software updates and make settings changes without ever leaving their desk. Centralized cloud-based management and high-scale deployments help eliminate time-consuming IT “sneakernet”. Plus, it works with nearly any video platform, making it future-proof.

• NoiseBlockAI — This is the only USB video bar with NoiseBlockAI technology that intelligently tunes out distracting sounds that interrupt meetings.
• Best In-Class Audio — Delivering the best audio quality in its class. Poly Studio lets teams on both ends of the call catch every word. You’ve never heard a USB video bar sound this good.
• Automatic Framing — With group framing and automatic speaker tracking, the connection feels personal. And it’s built right in, no drivers or software is needed on the PC. Smart panning and our unique split-screen conversation mode follow the conversation flow.
• Acoustic Fence — Outside conversations stay out of your calls with Acoustic Fence, which captures only the voices within a defined space.
• Easy Management — Cloud-based management tools let IT push software updates and make settings changes without ever leaving their desk. Centralized management and high-scale deployments help IT eliminate “sneakernet.”

Poly Studio USB Video Bar Specifications

Dimensions

• Unit dimensions:
  • 4.2″ x 27.3″ x 2.8″ (HxWxD) without stand
  • 6.2″ x 27.3″ x 2.8″ (HxWxD) with stand
• Weight:
  • 5 lbs 2.6 oz without stand
  • 6 lbs 4.7 oz with stand
• Remote control dimensions:
  • 7.2″ x 1.6″ x 0.7″ (HxWxD)

Application Requirements

• Supported operating systems:
  • Windows 7, 8.1, 10
  • MacOS 10.12, 10.13, 10.14
• Support for standard audio and video device drivers:
  • UAC 1.0 Audio
  • UVC 1.1/1.5 Video
  • HID 1.11

Power Requirements

• 12VDC/5A @ 100~240VAC, 50/60 Hz

Camera

• 120° DFOV, 110° HFOV
• UHD 2160p 4K) capture resolution
• 30 FPS
• Automatic group framing and speaker framing
• 5x zoom / EPTZ
• 2 camera presets

Audio

• Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression
• Poly NoiseBlock technology
• Poly Acoustic Fence technology
• Mute/unmute controls
• Stereo microphones
  • 6-element beamforming microphone array
  • Up to 15 ft pickup range
  • 120 Hz-16 kHz frequency response
• Stereo speakers
  • 100 Hz-20 kHz frequency response
  • Output = 90 dB @ 0.5m

Interfaces

• 1x USB 3.0 Type-C port (with 2.0 compatibility)
• Power connector
• Optional external microphone
• 3.5 mm stereo Audio In
• Kensington security lock
• 802.11ac Wi-Fi wireless networking for manageability; IEEE 802.11a/b/g/n compatible
• Bluetooth^®  4.2

Application Compatibility

• Compatible with any application that supports standard USB audio and video drivers, including but not limited to:
  • Certified for Microsoft Teams and Skype for Business
  • Zoom Certified
  • LogMeIn GoToMeeting^®
  • Google Meet certified peripheral
  • BlueJeans Network
  • Google Hangouts^™ communication platform
  • Amazon Chime
  • Cisco Webex^®
  • VidyoDesktop^™
  • Polycom RealPresence Desktop
  • Certified Google Meet Room hardware peripheral
  • RingCentral
  • StarLeaf
  • Dialpad

Security

• 802.1x support
• Certification management

Manageability (via WiFi)

• Poly Lens
• Companion App (running on Win/Mac PC connected to device)
• RealPresence Resource Manager
• Device Management Service

Warranty

• 1-year limited hardware warranty

Poly Studio USB Video Bar Package Includes

• Poly Studio
• Remote control with 2 AAA batteries
• Power adapter
• 5 m USB 2.0 cable (Type-C to Type-A)
• Wall mount kit
• Setup sheet
• Table stand

Environmental

• Operating temperature: 32-104°F
• Relative humidity: 5-95%, noncondensing
• Storage temperature: -13-160°F
