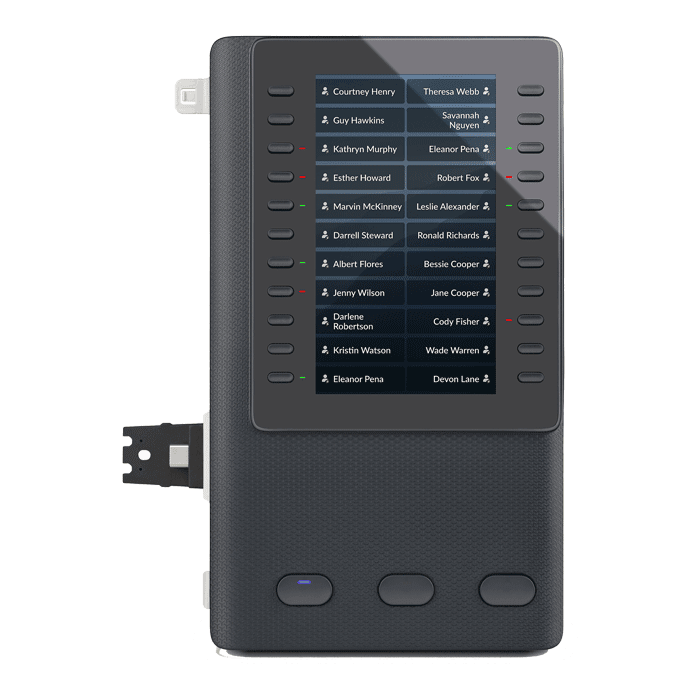

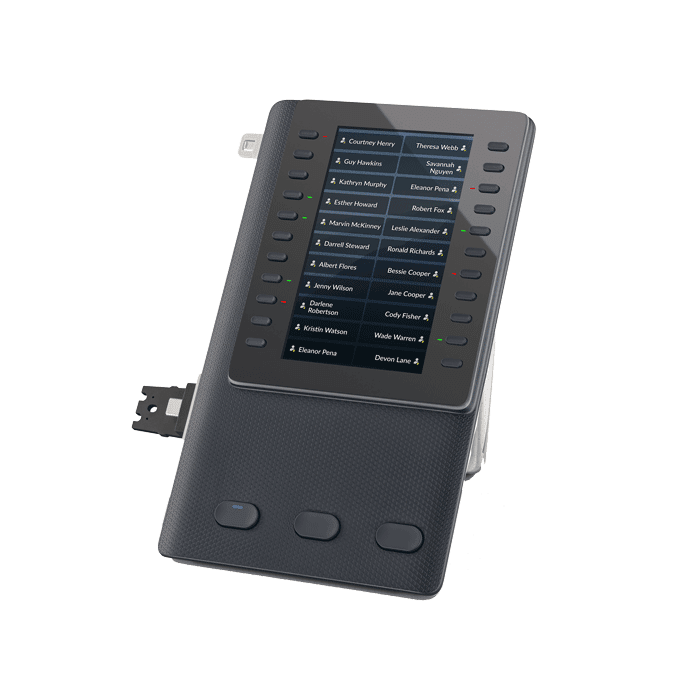

Poly Edge E Expansion Module

Turn Your Poly Edge Ip Phone Into A High-Performing Attendant Console

The Poly Edge E Expansion Module super-charges your Poly Edge E400/E500 Series phones. You’ll command 22 multifunctional line keys per page that can be easily set up as lines, contacts, speed dials or busy lamp field keys. Reduce the number of lost customer calls, shorten transaction times, and support more accurate call routing.



Ramp Up Instantly With Intuitive Controls

Each expansion module offers a 5-inch high-resolution color screen and easy-to-program line keys. Even installation is plug-and-play.

Each Expansion Module Adds 66 Contacts

Plug this in and automatically expand your phone’s power. One module displays 3 pages of 22 lines/contacts with dedicated keys. That’s a grand total of 66 more contacts. Or plug two modules into your Poly Edge E500 Series phone and add up to 132 contacts.



Simple Plug-And-Play Setup

This Edge E Expansion Module is completely plug-and-play — the Poly Edge E400 or E500 Series phone hosting the module supplies all the power and signaling.

---

Poly Edge E Expansion Module Specifications

GENERAL

• Part #: P Poly Edge E EM
• SKU: 2200-87020-025
• UPC: 017229175037
• Warranty: 1 year

DISPLAY

• 5 in color IPS LCD (480×800 pixel resolution)

FEATURE KEYS

• 22 multifunctional line keys configurable as line registrations, Enhanced Feature Keys, call appearances, contacts, speed dials, busy lamp fields
• Dual-color (red or green) illuminated LEDs for line status information
• 3-page keys for additional line appearances

COMPATIBILE POLY EDGE E PHONES

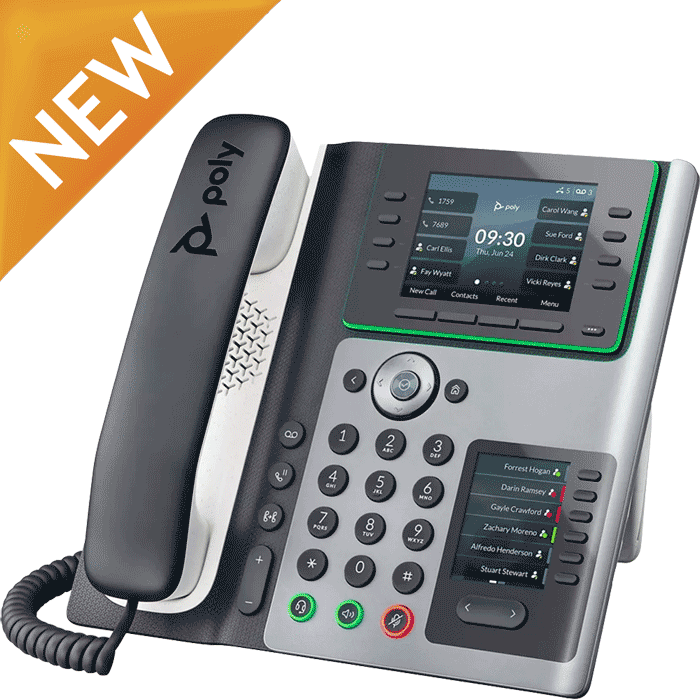

• Edge E400
• Edge E450
• Edge E500
• Edge E550

EXPANDABILITY

• One Expansion Module can be attached to a Poly Edge E400 or E450
• Up to two Expansion Modules can be attached to a Poly Edge E500 or E550

FEATURE SUPPORT

• Additional line registrations
• Shared call appearance, bridged line appearance (key system emulation)
• Call transfer
• Busy lamp field
• Speed dial
• Fully programmable line appearances
• Multilingual user interface (driven from host phone)¹

¹Planned localizations

POWER

• Provided by Poly Edge E host phone
• Host phone powering options:
  • IEEE 802.3 (af/at) PoE
  • Using the approved compatible external AC adapter for the host Poly Edge E400 or E500 series phone
• Powering starts automatically upon USB-C port connection
• No additional power source is required

REGULATORY APPROVALS²

• FCC Part 15 (CFR 47)

²Planned compliance

SAFETY

• UL 62368-1

OPERATING CONDITIONS

• Temperature: 0° to 40° C (+32° to 104° F)
• Relative humidity: 5% to 95%, noncondensing

STORAGE TEMPERATURE

• -40° to +70° C (-40° to +160° F)

AVAILABLE ACCESSORIES

• Wall mount bracket (2200-47410-002)

POLY EDGE E EM COMES WITH

• Poly Edge E EM console
• Poly Edge E EM desk stand
• Interconnection bracket and screws
• Setup sheet
